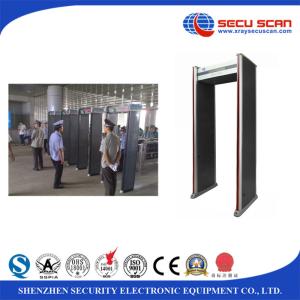

Audio alarm walk through security gates for schools hotels Military installations

Audio alarm walk through security gates for schools, hotels,Military installations

Feature highlights

• Accurate detection of magnetic, non-magnetic and mixed-alloy weapons
• Multi-Zone operation and visualization of the detected weapons
• Very high immunity to electromagnetic and mechanical interferences
• Very high reliability and performance consistency
• Built-in daily test feature
• Comprehensive auto diagnostic capability

Technical Sheet :

* 6,12,18 Pinpoint zones to precisely identify multiple target locations from head to toe.
* Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
* Sensitivity adjustable from Level 0 to 299

High: Can detect a pin
Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.

* Shock proof to avoid false alarm
* Sound and light alarm
* 2LED light bars on both door panels:gives alarm corresponding to the height or human body.

* Tamper-Proof: operate program is protected by password.
* Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
* Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
* Harmless to pregnant woman and heart pacemaker

Specifications:

Electric current: AC100V~240V 50/60Hz

Power: 10W

Work environment: -20℃~+45℃

Gross Weight: 70kg

Outer frame: 2220mm (h) x 820mm (w) X 522mm (d)

Inner frame: 2000mm (h) X 700mm (w) X 522mm (d)
