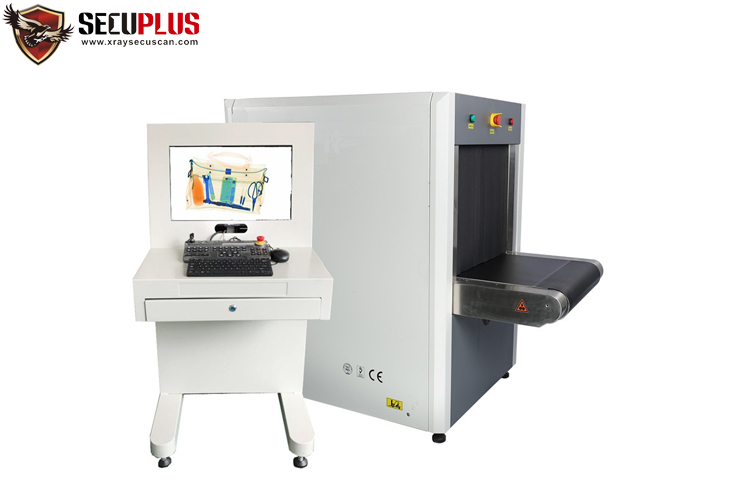

160kv Generator X Ray Baggage Inspection System Dual Energy 55db For Bank

Name: 160kv Generator X Ray Baggage Inspection System Dual Energy 55db For Bank
Brand: SECUPLUS
Price: 1 USD

Wholesale 160kv Generator X Ray Baggage Inspection System Dual Energy 55db For Bank from china suppliers

Brand Name : SECUPLUS

Model Number : spx6550

Certification : CE ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300sets/moth

Delivery Time : 5-7 working days after payment

Packaging Details : Wooden Pallet

Automatic Alarm : Yes

Have in Stock : Yes

TIP program : Support

Tunnel size : 653*505mm (w*h)

Conveyor speed : 0.20m/s

Max Load : 100kgs

X Ray generator : 160KV

Zoom : Up to X64, support continuous magnification

Storage capacity : More than 100000 image

Dual-Direction : Yes

Contact Now

Dual Energy X Ray Baggage And Parcel Inspection 160kv Generator For Bank Use

High Light

Powerful image dealing ability
Accurate Z7,Z8,Z9 mark for explosive and narcotics
Windows 7 operation system
Automatic save scanned image
Friendly operation System
Reliable performance

Technical characteristics

Dural energy penetration system
TIP program
Clear and distinct image
Scanned imaged can zoom up to 64 times
Partly zoom up to 3 times
13 kinds of image processing functions and 6 kinds of pseudo color

Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points;
Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc;
Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.

Technical parameters

Tunnel size	653505mm (wh)
Conveyor speed	0.20m/s
Conveyor height	693mm
Max Load	150kgs
Wire Resolution	38AWG
Spatial resolution	vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration	35mm steel panel
Monitor	21.5 inch,High resolution 1280*1024
X Ray generator anode voltage	160KV (Working at 150KV)
Cooling/operation cycle	Oil Cooling /100%
X ray Dose per inspection	< 1.14 USv
Image processing	Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom	Variable zoom up to X64, support continuous magnification.
Image Checking	Continuous check back image
Storage capacity	Can store more than 100000 image
Radiation leakage	<0.5 USv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety	In accordance with ASA/ISO1600 film safe standard
System function	F1,F2,F3 programmable key,high density alarm,TIP；date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function	Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
Frame size	20439011384mm (LWH)
Weight	500kg
Environment temperature/humidity	- 3℃～+40℃ / 5%～95%(non-condensing)
Storage temperature/humidity	-43℃～+60℃ / 5%～95%(non-condensing)
Power	220VAC (+/-10%) 50+/-3HZ
Consumption	0.7KvA
Noise Level	<55db
