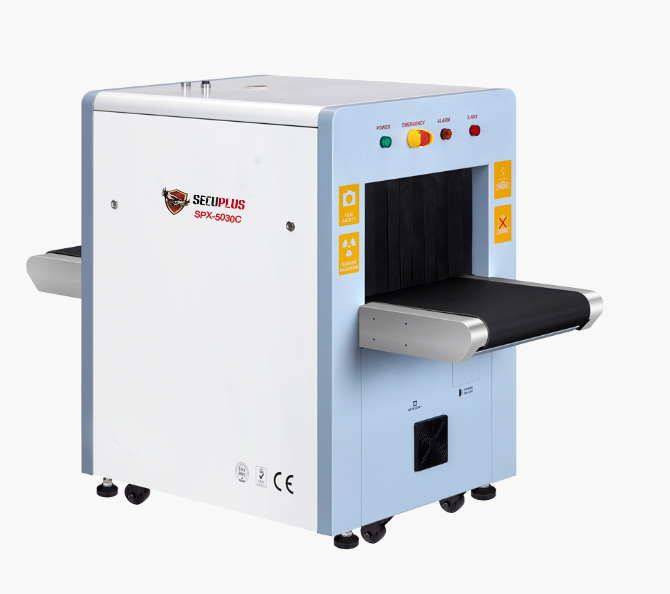

Small Tunnel Size Dual Energy Baggage X Ray Machine For Hold Baggage Inspection

Brand Name : SECU PLUS

Model Number : SPX-5030C

Certification : CE, ISO, USFDA, Radiation Safety

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500 sets/month

Delivery Time : One week when there is stock, One month when no stock.

Packaging Details : Wooden Packing

Tunnel size : 500(W)*300(H)mm

Energy : dual energy

Penetration : 30-32mm steel

Software Interface : Turkish, Persian, Russian, French, English

Training : Free of cost at the factory

Weight : 450kgs

Warranty : One year free spare parts, life time technic support

Operation : User maual attached with machine

Price : Negotiable

Contact Now

mall Tunnel Size Dual Energy X Ray Baggage Scanner For Hold Baggage Inspection

Model: SPX-5030C

Certification:

  1. CE Certificate
  2. ISO9001 Certificate
  3. ISO14001 Certificate
  4. OHSMS18001 Certificate
  5. USFDA Certificate
  6. Radiation Safety Certificate From Chinese Government

Specification:

X Ray Generator:

Beam direction Upward
Beam angle 80 degree
Anode voltage 140kv
Anode power 0.7mA
Cooling / Duty Cycle Oil Cooling /100%

General specification:

Tunnel Size 500(W)*300(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 150kg
Dose per Inspection <1.5Gy/h
Resolution < 0.0787mm Copper Wire
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm
Vertical: Dial1.0mm
Penetrate resolution 30-32mm
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)

X Ray Image:

X-ray Sensor L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Image Processing Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zoom 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy Switch from high energy to low energy
Adavantage Assist to detect drug and explosive powder

Computer Specs:

  1. CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB
  2. Motherboards: Intel G41/Nvidia chip set, 7025 or better on OEM motherboard
  3. Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1 and 1PCI BX press *16
  4. Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots.
  5. Hard Disk drive: 500GB 7200 rpm serial ATA HDD.
  6. Mouse: Optical

Packing and Shipment:

Packing details carton packing, two cartons
Carton size: (L)88*(W)88*(H)1430mm
Carton Size: (L)2380*(W)1120*(H)1660mm
Total Gross Weight:700kg
Payment terms T/T, Western Union, Cash,L/C
Shipping methods By air (5-7days, most expensive)
By express (3-7days, more expensive)

By sea (15-28days, cheapest)

Installation Data:

  1. Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
  2. Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
  3. Operation Power: 220VAC(± 10%)50± 3Hz
  4. Power Consumption: 1.0 KW (max), 0.7KW(working)
  5. Noise: <58dB.

Our service:

  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.
